S567G
A smart intercom, as well as a gear for audiophile

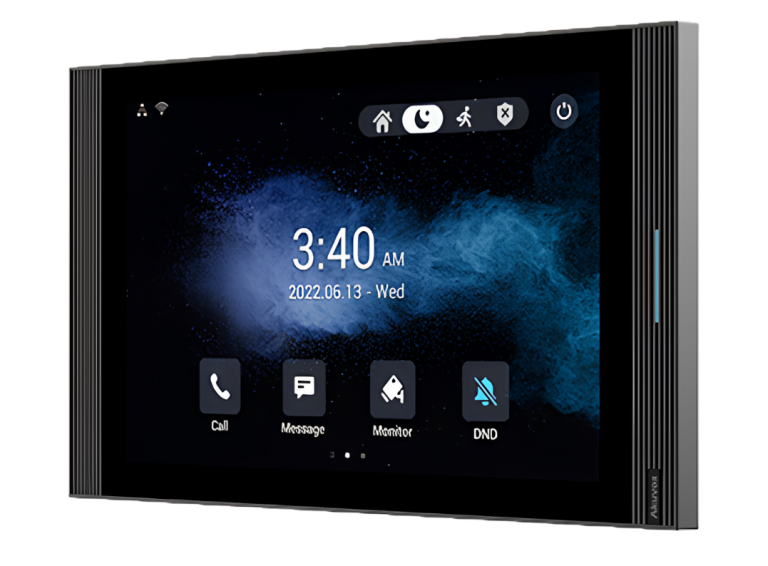

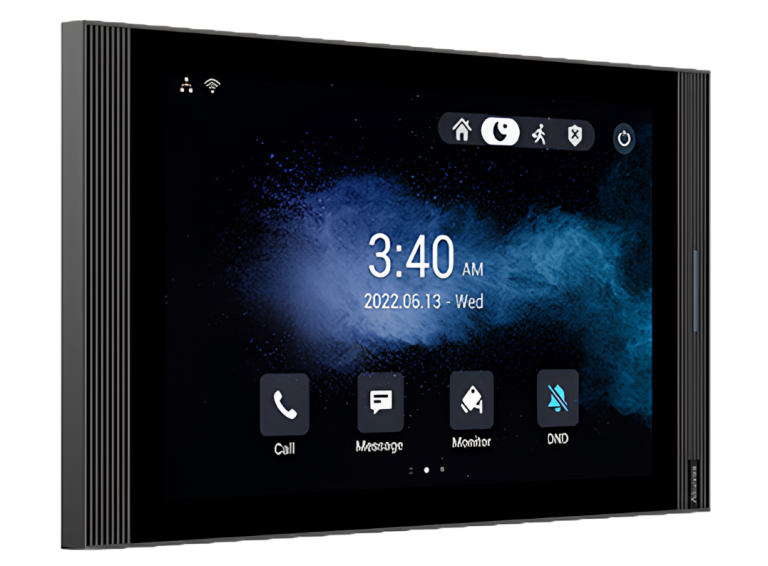

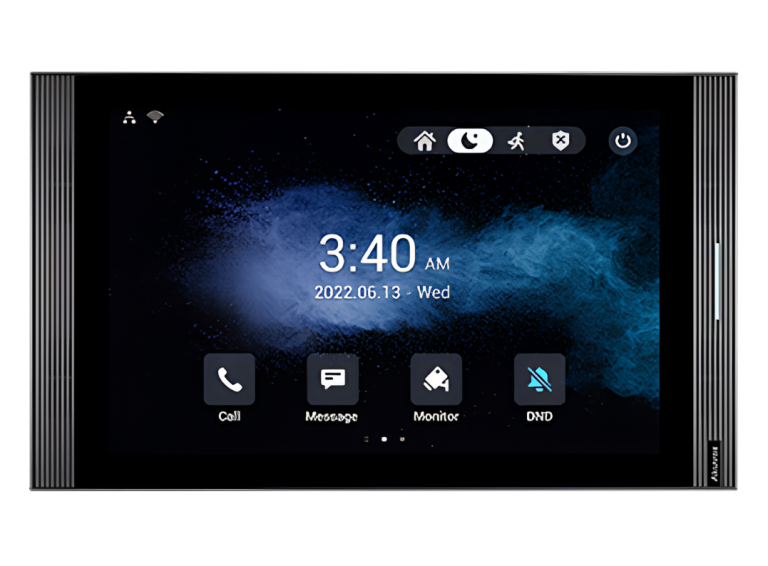

Akuvox S567G 10” indoor monitor runs on the industry-leading Android 12 OS, and is equipped with Wi-Fi 6 communication technology. The dual mics and quad speakers together provides superior audio quality. With the minimalist design, S567G blends well into any modern interior design.
S567G
at a Glance
Key hardware overview
Item
Details
- Front panel
- RAM / ROM
- Display
- Screen
- Wi-Fi
- Bluetooth
- RS485 Port
- Relays Out
- Bell in
- Alarm Input

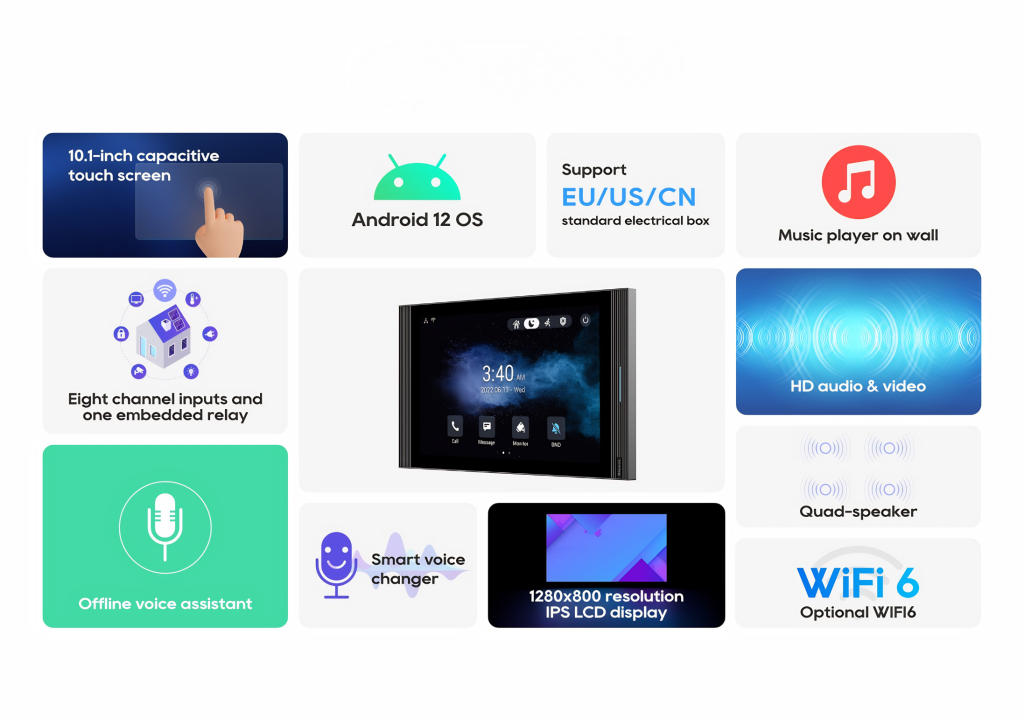

Features
Premium touch screen for your home
The Akuvox S567G Indoor monitor with an Android 12 operating system, provides an unparalleled audio-visual intercom experience with four high level speakers. Automatically adjust screen brightness through environment sensing, Voice Changer to bring safety to your home.
- Strong compatibility with Android 12 OS
- Completely solve the stability problem of Wi-Fi with Wi-Fi 6
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
- Support US or European electrical wall box mounting
- Built-in Google services with Google GMS certification
- Two-way audio communication with other units in the network
- Powered by PoE or external source
- Support Voice Changer to protect the children and women living alone
Smarter and More Secure Home Living
Answer intercom calls and unlock doors with your voice.
Shield your identity using the voice changer function
Audio
Get a Hold of Great Sound
The powerful quad-speaker, quad-channel sound system offers clear highs, dynamic mids and deep bass, producing rich, detailed sound that adapts to any room and reproducing the sounds as they’re meant to be heard. So residents can enjoy crystal clear audio communication with visitors as if conversing face to face before buzzing them in.
Extend What's Possible for an Indoor Monitor
The high openness of Android 12 OS allows S567G to be integrated with mainstream smart home systems.
Enjoy Greater Stability with Wi-Fi 6
Wi-Fi 6 is designed to improve speed, increase efficiency and reduce congestion in heavy bandwidth usage scenarios. The built-in Wi-Fi 6 protocol of S567G promises wider coverage, better penetration and more stable connections even if you have a large number of devices in your household.
Specifications
Physical & Power
- Microphone
Dual microphones, -26dB
- Speaker
- Ethernet Ports
- Power
- DC
- Tamper Resistant
- Installation
- Dimension
- Working Humidity
- Working Temperature
- Storage Temperature
Touch Screen Display
- Display Mode
Dual microphones, -26dB
- LCD Size
- Aspect Ratio
- Resolution
- Contrast ratio
- Luminance
- Viewing Angle
- Touch Screen
Audio
- SIP v1 RFC2543, SIP v2 RFC3261
- Broadband audio codec: G.722
- Echo Cancellation
- Comfort Noise Generator
- Narrowband audio codec: G.711a, G.711μ, G.729
- DTMF: In-band, out-of-band DTMF RFC2833, SIP Info
- Voice Activation Detection
- Automatic Gain Control
Networking
Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web-based packet dump
- Firmware upgrade
- Web management portal
- Configuration backup / restore
- System logs include door access logs
Video
Streaming formats: H.263 & H.264
Application Scenario
Where S567G belongs
Villas
