S562W
at a Glance
7-inch
capacitive touch screen
1024 x 600
resolution
Linux OS
8
channel inputs
&
1
embedded relay
RS485
Support
Dimension
216.4×118.8×21.7mm
At a Glance
Item
Details
- Front panel
- RAM / ROM
- Display
- Screen
- Wi-Fi
- RS485 Port
- Relays Out
- Bell in
- Alarm Input

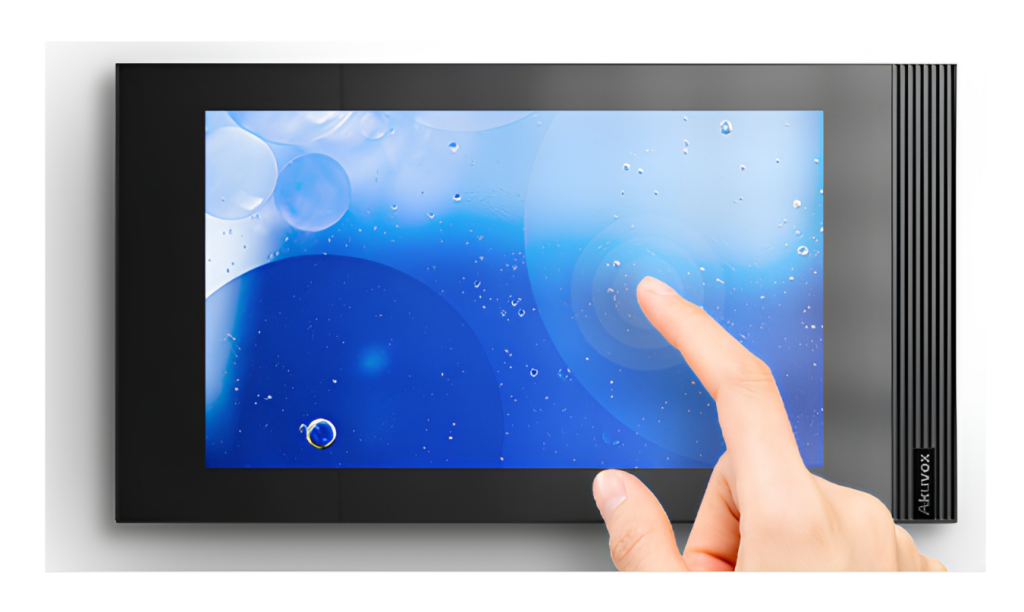

Premium touch screen for your home

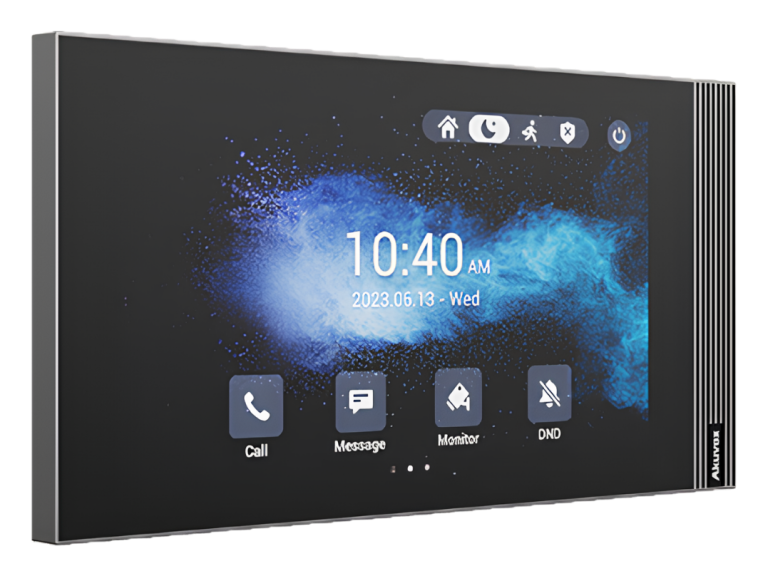

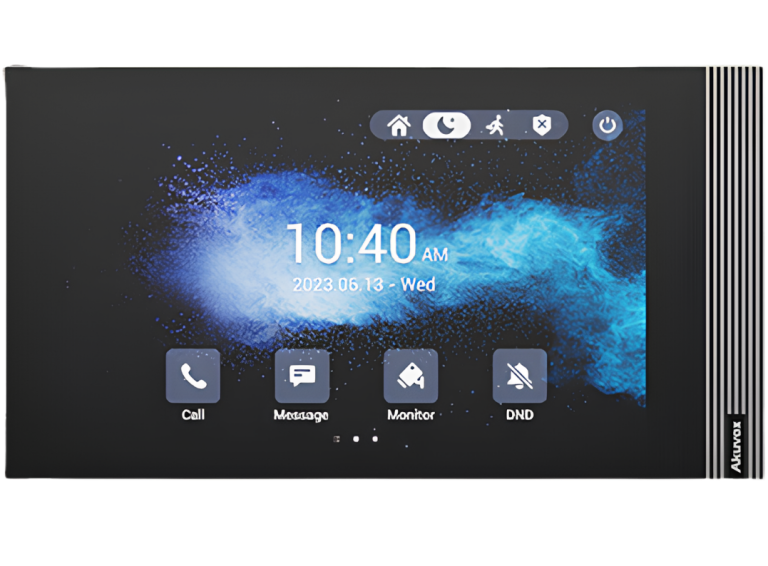

The Akuvox S562W multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.
- Ultra-clear, stylish appearance
- Linux OS
- 7-inch capacitive touch screen with energy saving mode
- Completely solve the stability problem of Wi-Fi with Wi-Fi 6
- Two-way audio communication with other units in the network
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- Complies with SIP standard for easy integration in every SIP capable PBXes

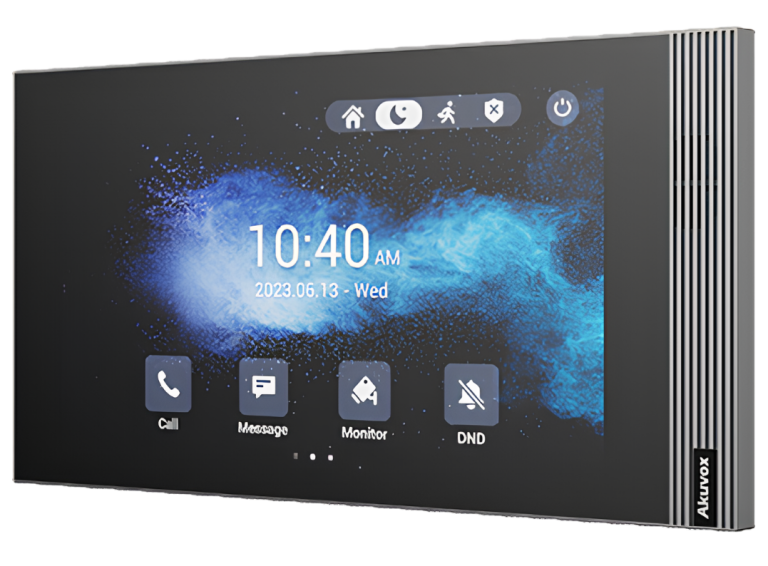

Streamlined Design for Modern Homes
The design of a slim body decorated with linear grilles, which conceal the speaker, lends S562W a cohesive and refined look and feel.
Exceptional Audio and Visual Experiences
Employing a front-facing speaker and a 1024×600 resolution display, S562W delivers superior audio clarity and crisp, detailed images, providing users with an exceptional audio and video experience.
More than a Home Intercom
S562 supports integration with surveillance cameras, allowing users to stream and monitor the live footage from both door phone cameras and 3rd-party security cameras.
Elevate Your Home Intercom with Wi-Fi 6
Wi-Fi 6 enhances the system’s security with WPA3 encryption, safeguarding against potential threats. Additionally, the home intercom delivers fast speeds and seamless performance under heavy loads and ensures stable connection even with multiple devices on your network.
Note: Wi-Fi 6 is only available with the S562W model.
Installation Versatility & Aesthetic Compatibility
In addition to the horizontal mount, the S562 also supports vertical mount (Model: S562-V), empowering installers to tailor solutions to diverse property layouts — whether for compact urban apartments or sprawling multi-tenant complexes, blending seamlessly with varied interior aesthetics.
Physical & Power
Item
Details
- Microphone
-42dB
- Speaker
- Ethernet Ports
- PoE
- Power
- Tamper Resistant
- Installation
- Dimension
- Working Humidity
- Working Temperature
- Storage Temperature
